SPC
Stylish Penetration Control
SPC is DGI’s proprietary technology that utilizes a specially formulated “Stylish Penetration Control” liquid to enhance ink penetration, resulting in superior color uniformity and Perfect double-sided results for flags.

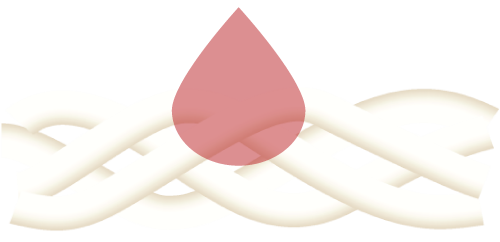

Penetration Without SPC

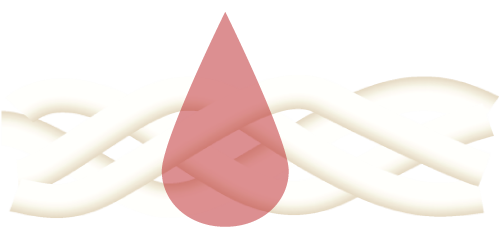

Penetration With SPC
Without SPC
With SPC

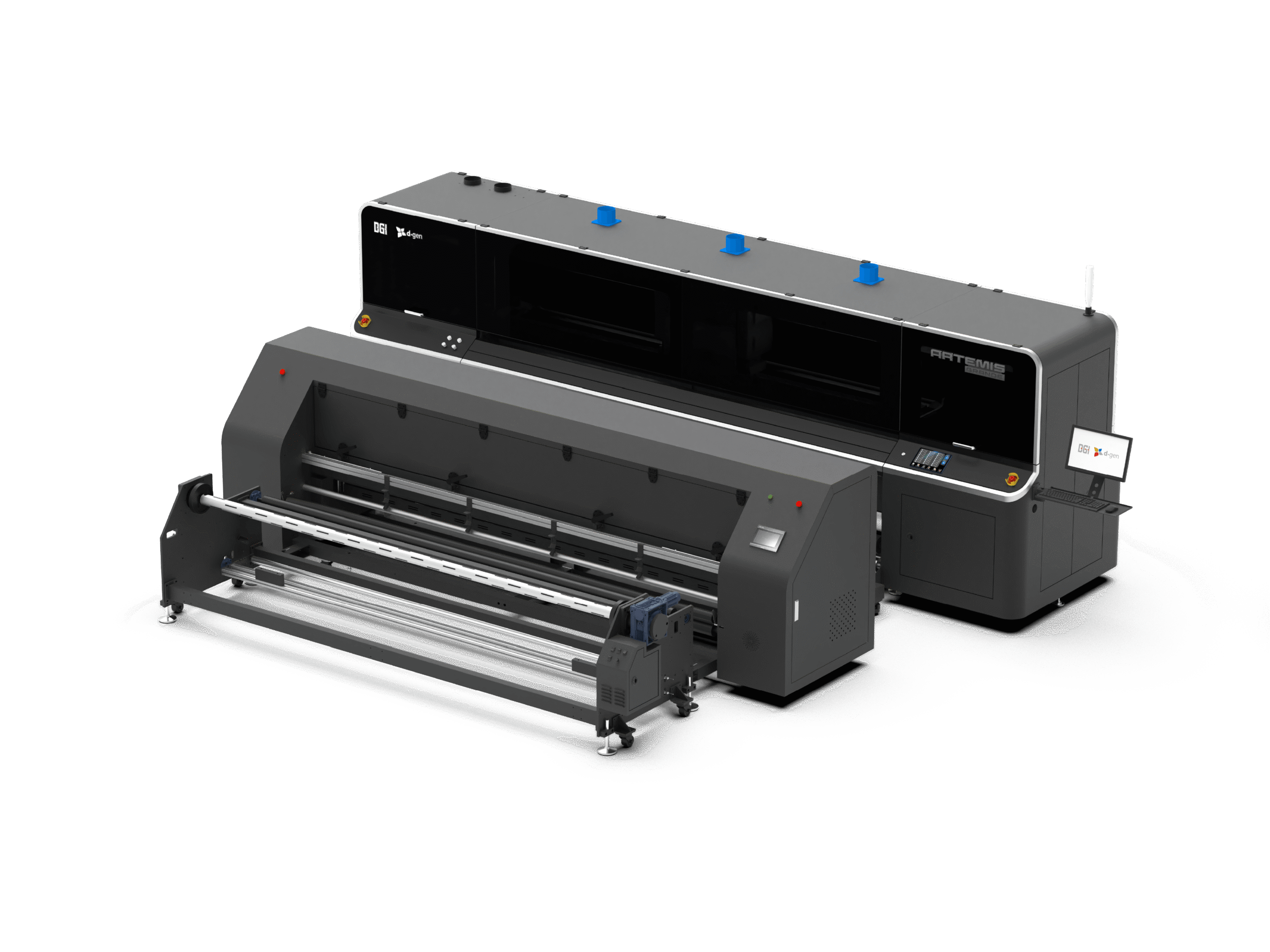

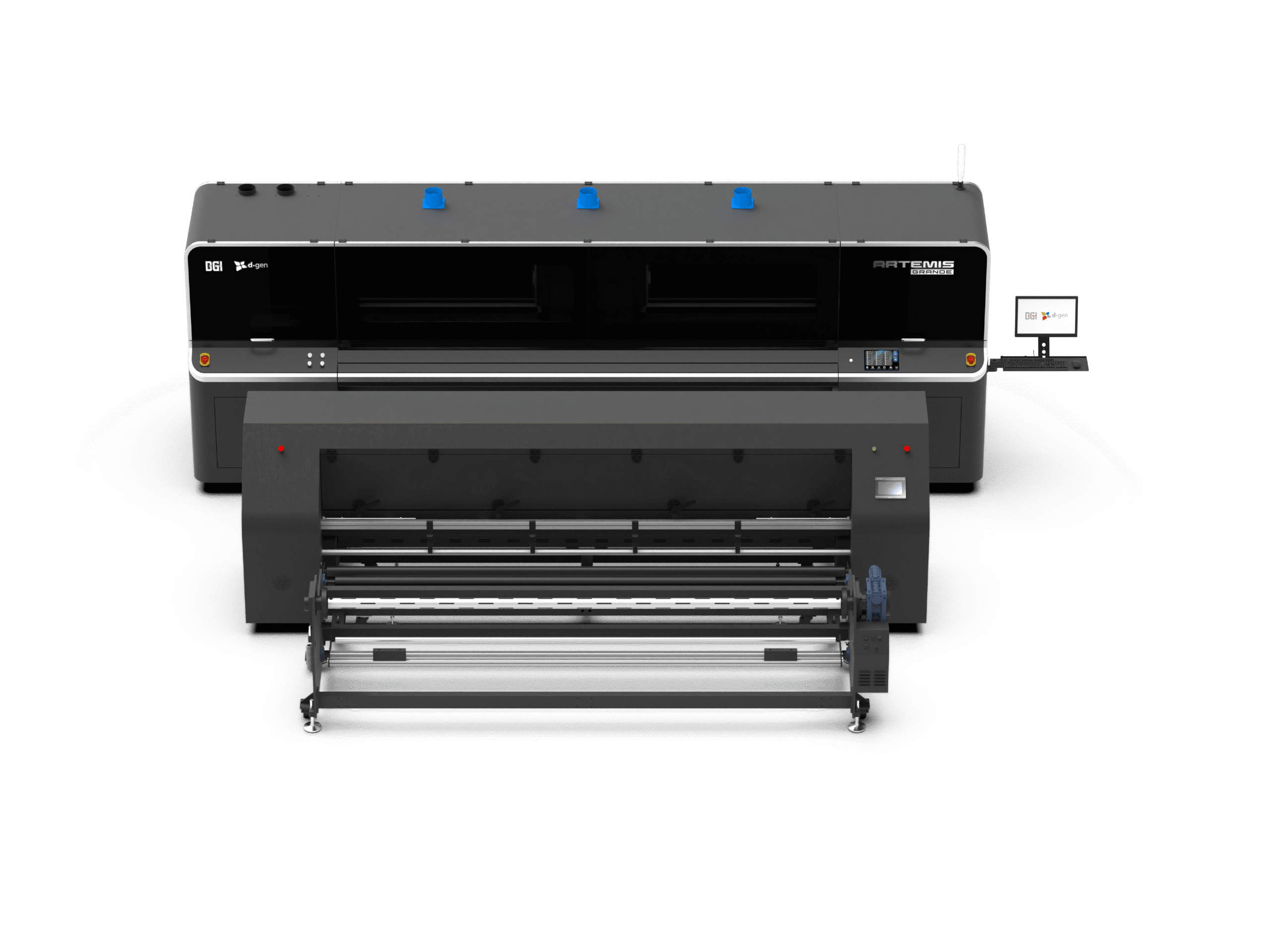

ARTEMIS GRANDE
SPC
Stylish Penetration Control
Unrivaled Performance
New benchmark
in speed and
productivity
Intelligent Engineering
Smarter features for
versatility and
quality
Economic Advantage
Maximizing Efficiency
through Inline Systems
THE NUMBERS THAT MATTER
Technological advancements of the ARTEMIS GRANDE
High Production Speed
200m2/h
(4C, 360×1200
2pass)
Printing Resolution
720 x 3600 DPI
Variable Dot
7pl Smallest
Droplet and
Variable Dots
Ink Configuration
4, 6, 8 Colors
+ Optional SPC
Max Media Thickness
15mm
Max Printing Width
3,200 mm
PERFORMANCE
Engineered For Pure Speed
4 Color
200 m²/h (2 pass)
6/8 Color
150 m²/h (3 pass)
Advanced Head Array
4×3 staggered layout of 12 Ricoh Gen5 print heads maximizes print width coverage with every pass.
Linear Motor Carriage
X-axis driven by quiet, high-precision linear motor eliminates pulley replacements, ensuring consistent printing at high speeds.
Multiple Print Modes
3-Pass Mode achieves up to 150m/h production speed.
Automatic Carriage Height
Adjusts up to 15mm automatically, enabling high-quality printing on thick materials like carpets without manual intervention.
Expanded Color Gamut & SPC
Supports 4, 6, and 8 color configurations, including optional Stylish penetration liquid for vibrant brand colors.
Enhanced Media Handling
Superior feeding system ensures reliable, precise media transport for consistent print quality across entire roll.
VERSATILITY
Print on More Surfaces Than Ever Before
Automatic Carriage Height Adjustment
Feature: Clearance up to 15mm enables printing on thick and textured media.
Advantage: Print directly onto carpets, rugs, and challenging textiles impossible for standard printers.
Benefit: Expand into high-margin markets like custom flooring, home decor, and specialty textiles.
Brilliant Color : Vibrancy and Flexibility in Every Drop
Feature
Flexible ink configurations with up to 8 colors, including Light Cyan, Light Magenta, Orange, and Blue, plus optional Stylish Penetration (SPC) Liquid.
Advantage
Achieve exceptionally wide color gamut for photorealistic quality, smooth gradients, and precise brand color matching.
A NEW SPECTRUM OF APPLICATIONS
Power and precision unlock opportunities across demanding textile printing segments.
From high-volume signage to custom home textiles, one machine provides versatility to capture it all.
Soft Signage & Display Graphics
Capitalize on $600M+ advertising print market with
speed, color vibrancy, and 3.2m width for high- impact displays.
Home & Technical Textiles
15mm automated head clearance enables printing
on thick materials like carpets, opening custom
decor market.
Design: The Shape of Innovation
Artemis Grande introduces a new design identity for DGI. Inspired by grace and power, flowing curves and refined interface represent harmony of form and function.
Distinctive Identity
Unique aesthetic
that stands out
on production
floor.
User Centric Ergonomics
Key touchpoints
positioned for ease
of use and
maintenance
DGI Tone & Manner
Creating cohesive family look design
Design Concept : Sophisticated Elegance
ARTEMIS GRANDE is an innovative digital printer that combines sophisticated, fluid curves with ergonomic engineering to move beyond traditional industrial aesthetics and maximize both user convenience and safety.

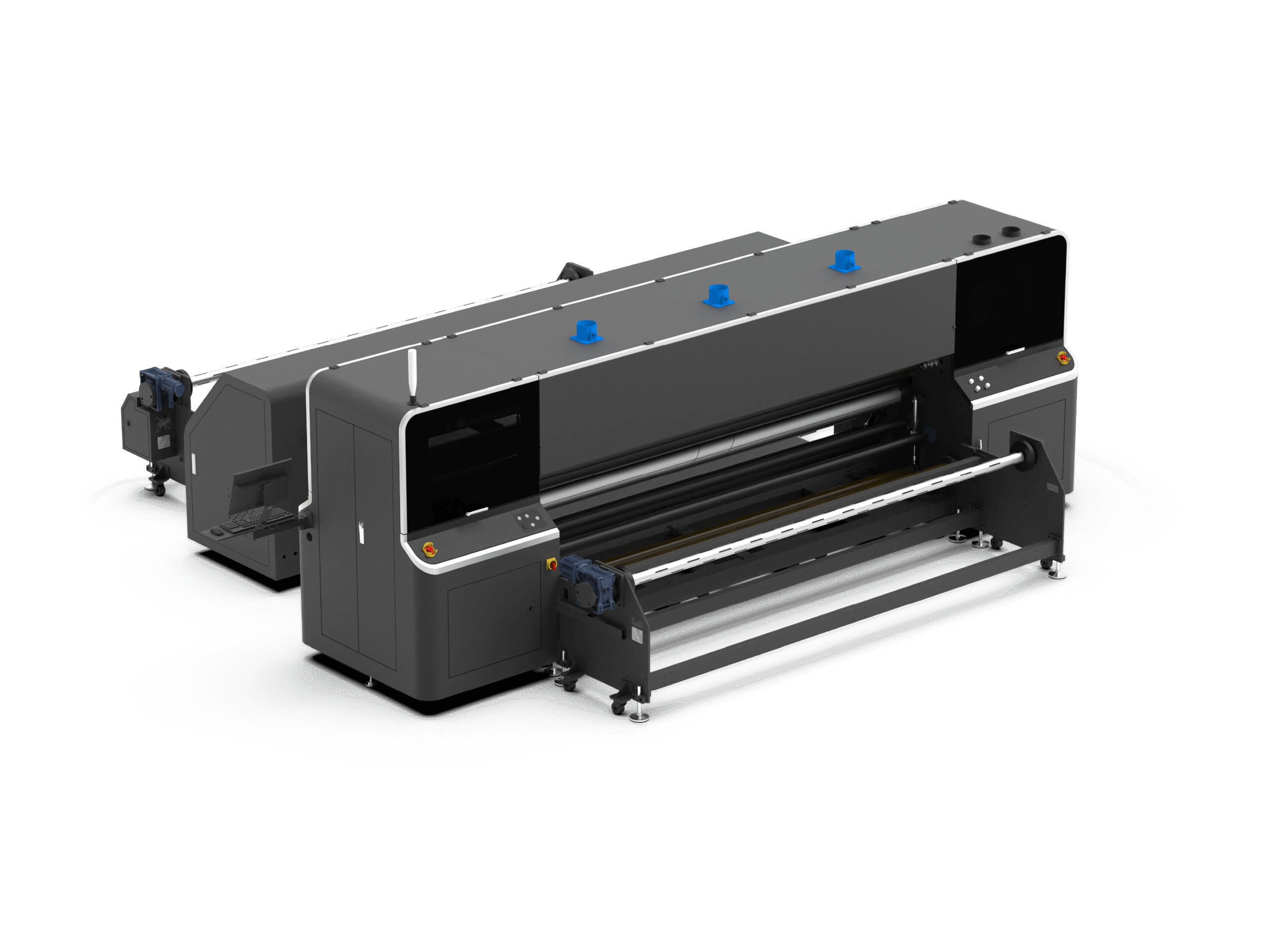

ARTEMIS GRANDE

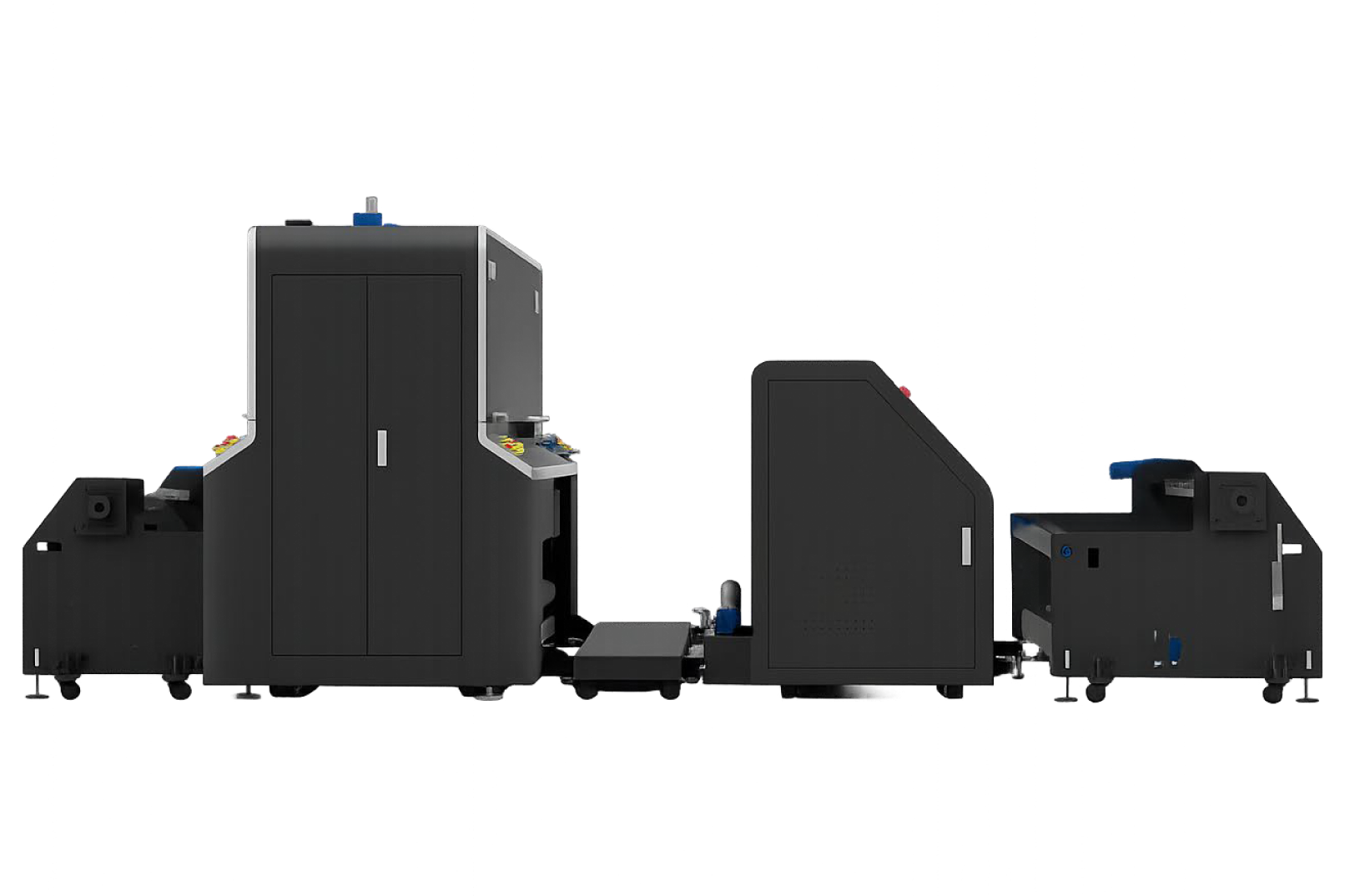

Production Line Configuration
UNWINDER >
PRINTER >
SUB PLATE >
FIXATION >
WINDER
Key Features
Features That Set Apart Artemis Grande

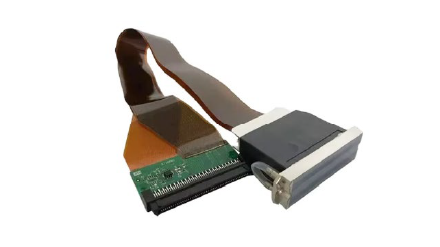

More Precise Printhead Control
To ensure high-resolution printing, the Ricoh Printhead is equipped with 1,280 nozzles, enabling it to produce droplets as small as 7pl.
Dedicated Waveform
The dedicated waveform, developed by DGI, enables us to respond to customers’ demands for quality graphics and design in various ways.
Advanced Cleaning System
Compared to Ricoh Gen5, the Gen6 print head can achieve a high ink drop ignition frequency of up to 50KHz to meet the demand for high-speed printing.

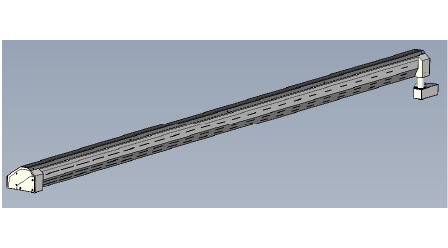

Mist Removal In Main Body & Head Carriage
Dual dust removal systems prevent contamination
of both the media and peripherals by effectively
removing ink mist and dust generated during printing.

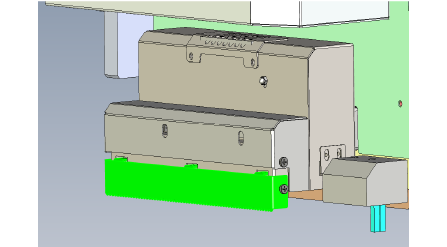

Head Collision
Protection System
Bi-directional anti-collision sensors are located on both the left and right sides of the carriage to detect and prevent potential damage.

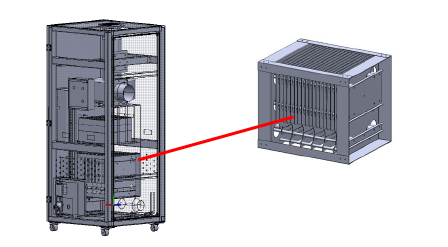

Oil Mist Removal system
(Fume Buster)
Fine particulate oil mist is effectively removed through an electromagnetic adsorption method, maintaining a clean working environment.

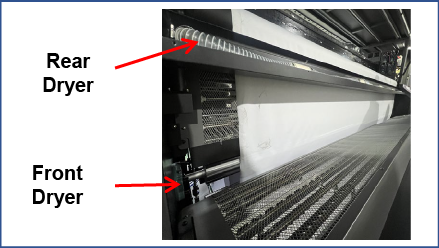

Dual Dryer System (Rear & Front)
Dual heaters are arranged in a 2-stage front and rear configuration to achieve powerful and consistent drying performance.

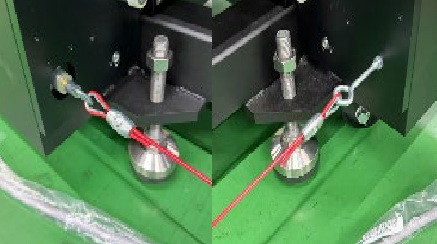

Safety Rope Switch
For maximum operator safety, emergency stop rope switches are located at both the front and rear of the machine.

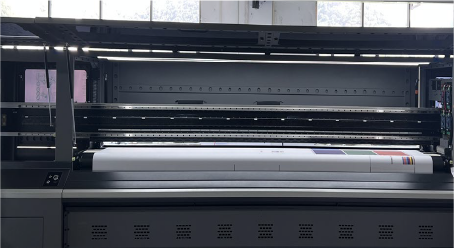

Linear Motor & Metal Encoder
The application of a high-precision linear motor and metal encoder scale provides superior stability and accurate output.

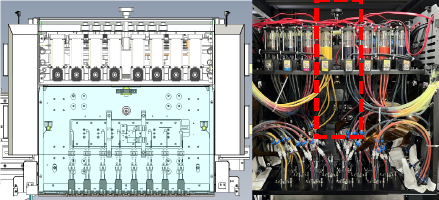

Z-Axis Carriage Motion
The carriage height can be adjusted along the Z-axis to accommodate various media
thicknesses (up to 15mm).
ARTEMIS GRANDE SPECIFICATIONS
PRINTING
Printheads
12 pcs. Ricoh printheads (3 Stagger)
Ink Type
Disperse/Direct Sublimation
Number Of Colors
4/6/8 Colors
Max. Printing Size
3,200mm
Max Printing Resolution
720 x 3,600 DPI
INK
Water Based Dye Sublimation
Yellow, Magenta, Cyan, Black, Orange,
Turquoise, Light Cyan, Light Magenta, SPC
Ink Capacity
5L
PRINTING SPEED
4C, 360 x 1,200 DPI, 2 pass
200 m²/h
4C, 360 x 1,800 DPI, 3 pass
150 m²/h
4C, 360 x 2,400 DPI, 4 pass
110 m²/h
6/8C, 360 x 900 DPI, 3 pass
150 m²/h
6/8C, 360 x 1,200 DPI, 4 pass
115 m²/h
6/8C, 360 x 1,800 DPI, 6 pass
76 m²/h
6/8C, 360 x 2,400 DPI, 8 pass
58 m²/h

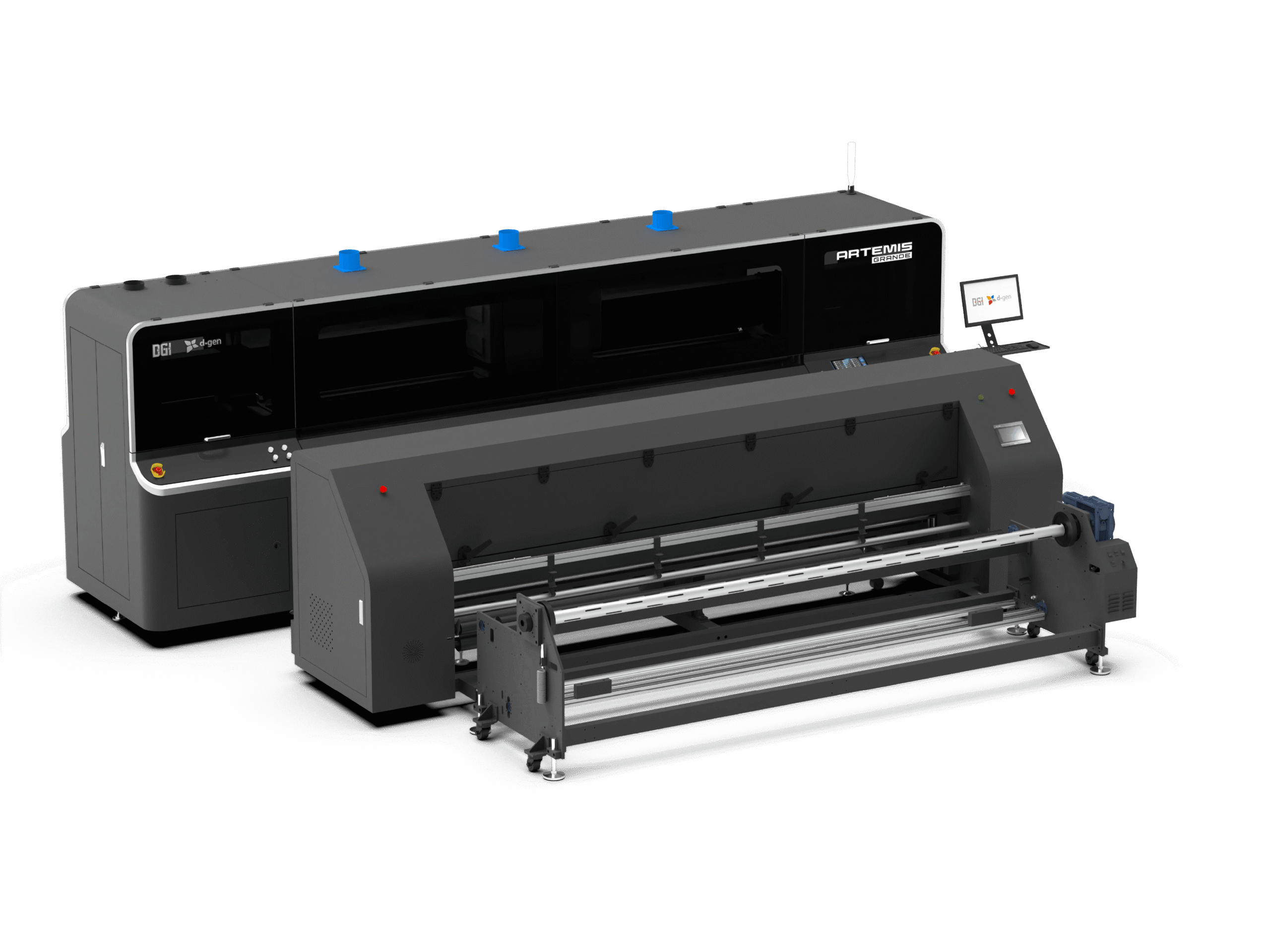

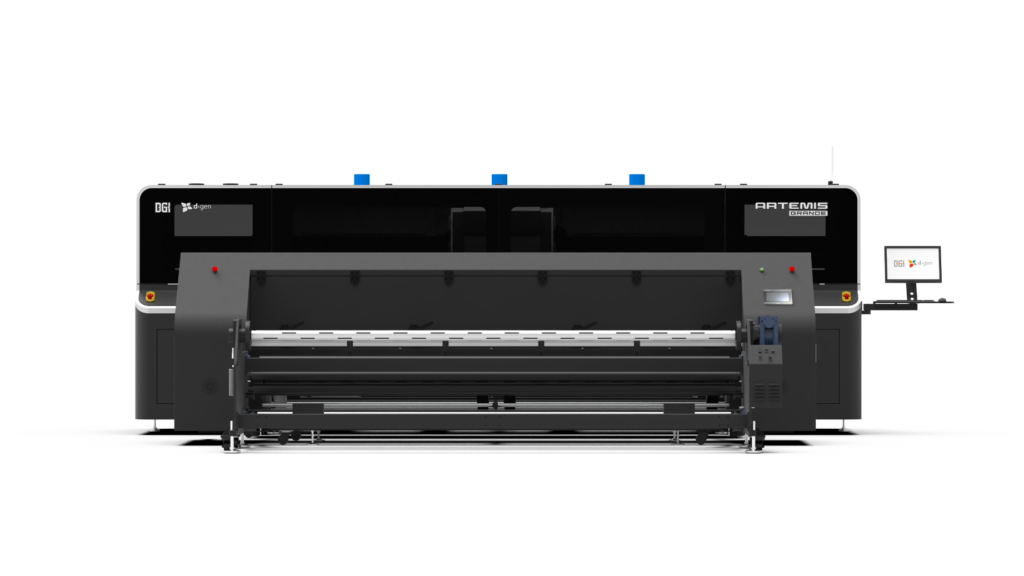

ARTEMIS GRANDE
